Brand: Beta Tools

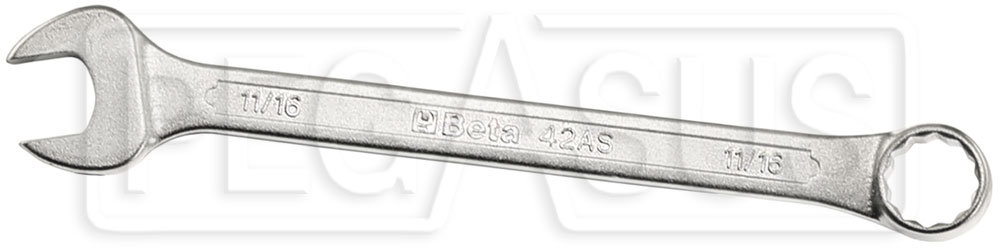

The 42AS Series combination wrenches from Beta Tools have one open end (15° angle) and one offset (15° angle) 12-point box end. Both ends of this wrench fit SAE fasteners with a standard 11/16" hex head (the box end will also fit fasteners with a 12-point head). The tough, textured finish looks great and hides scratches. Sold individually.
Beta Tools 42AS11/16 Dimensions |
Dimension (see drawing) | Name | SAE | Metric |
L | Length | 8.35" | 212mm |
S1 | Head Thickness (Open End) | 0.26" | 6.7mm |
S2 | Ring Thickness (Box End) | 0.40" | 10.2mm |
A | Head OD (Open End) | 1.44" | 36.6mm |
Ø | Ring OD (Box End) | 0.99" | 25.2mm |
Weight | 4.2 oz | 120g |
