Brand: Optimum Balance Products (OBP)

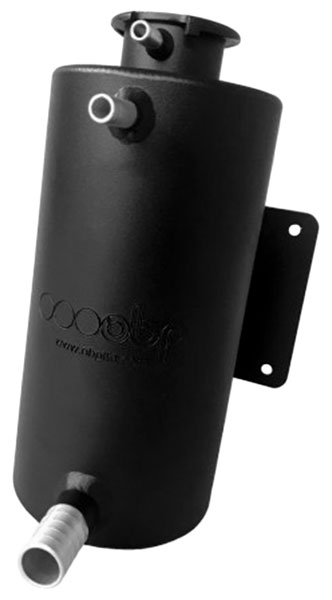

This lightweight aluminum coolant header tank (expansion or fill tank) has barbed inlet and outlet fittings for use with rubber coolant hose. The bottom fitting accepts 3/4" ID hose, and the top inlet accepts 3/8" ID hose. The vent outlet accepts 5/16" hose. The tank has built-in side mounting brackets and accepts a standard SAE "A" Size radiator cap (not included). The obp exclusive "Dark Matter" coating provides a tough, matte black finish that looks great.
A header tank is recommended for racing applications where the top of the radiator is mounted lower than the top of the engine. Mounting the tank higher than the engine insures a complete fill and provides an air space for expansion. Accepts any standard SAE "A" size automotive radiator cap (not included).
Dimensions:
Total width, including mounting tabs: 5 7/8"
Depth (mounting surface to front): 4 3/8"
Diameter of can, without fittings: 4"
Overall height, including filler neck: 8 5/8"
Height of can without filler neck: 7 3/4"
Depth that bottom barb (3/4" OD) protrudes from can: 1 3/4"
Depth that top barb (3/8" OD) protrudes from can: 1 1/4"
Capacity: 1.5 quarts
Maximum recommended pressure cap: 30psi
