Brand: AIM Sports

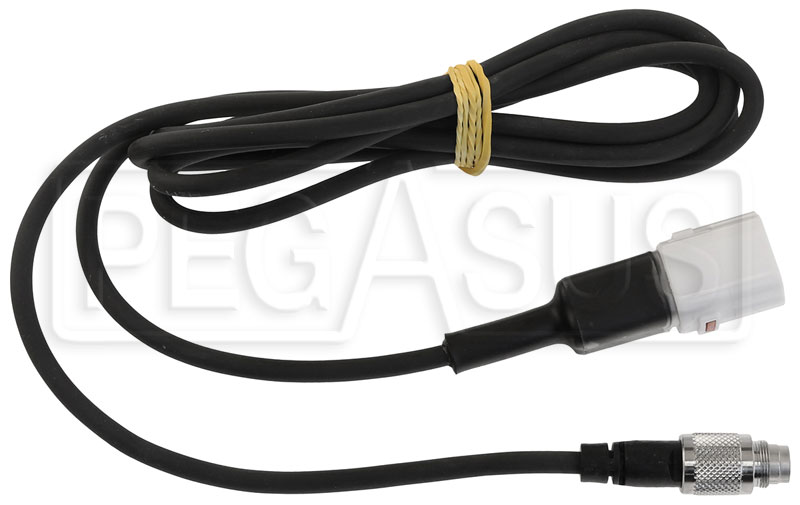

This cable connects your AiM Solo2DL* lap timer to the ECU on your Yamaha R1 / R6 motorcycle for easy sampling of RPM and other data. One end has the 7-pin 712 (screw-in) connector for the Solo2DL, and the other end has a special 4-pin plug to fit the stock Sumitomo diagnostic connector udner the YZF seat. This lets you retain the stock gauge cluster, which is required for certain functions.
Data logged from the Yamaha ECU includes RPM, wheel speed, coolant temp, selected gear, throttle position, intake air temp, and more. Works with 2015-19 Yamaha YZF-R1 / R1M and 2017 and later YZF-R6. Logger cable measures approximately 28" long.
* For Solo2DL only, not for original SoloDL or standalone Solo or Solo2.
Not for use with any other AiM device not listed here.
