Brand: AIM Sports
| This item qualifies for FREE Shipping in the continental United States! |
Measuring less than 2.5" x 1.75" x 1.25" (62mm x 45mm x 25mm), the ECULog is the most compact data logger ever produced by AiM... and yet, it is every bit as capable and expandable as the most powerful AiM systems!
As the name suggests, the ECULog is designed to log data directly from your ECU. The ECULog can communicate with the same extensive list of OEM and racing ECUs as other AiM systems. You can also add any of the CAN expasions that you would use with other AiM systems. Add a Data Hub to connect GPS, Lambda, SmartyCam, and even ACC2 sensor hubs to build this little powerhouse into a full-function data logger!

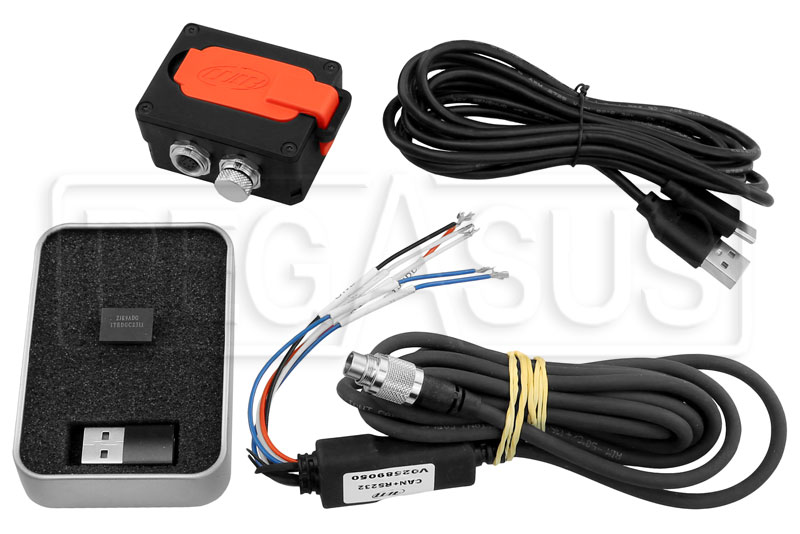

Two 712-type (screw-in) Binder ports provide connection for your ECU (CAN, K-Line, or RS232) and CAN Expansion. This version includes a 2 meter (6.5 ft) ECU cable with a 7-pin 712 connector at one end and unterminated wires for CAN+, CAN-, RS232TX, RS232RX, Power, and Ground connections. In addition to a large 4GB internal memory, a removable 16GB USB-C memory card is also included. Weighs approximately 100g (3.5 oz). CAN expansions sold separately.
