Brand: TURBOSMART
| This item qualifies for FREE Shipping in the continental United States! |

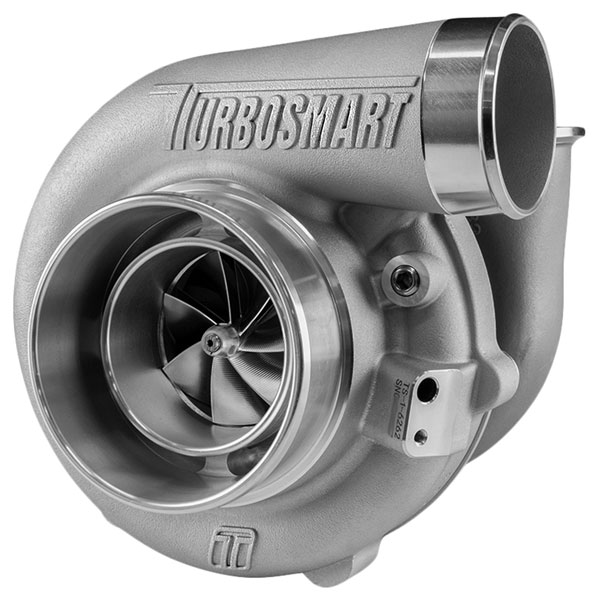

The TS-1 Series turbochargers from Turbosmart feature the simplicity and lightness of oil cooling, making it easy to bolt on horsepower. The competition-proven cast 310S stainless steel housings hide a unique dual-ceramic bearing and main shaft assembly that has been designed for the lowest possible rotating mass, meaning quicker spool-up and better response.

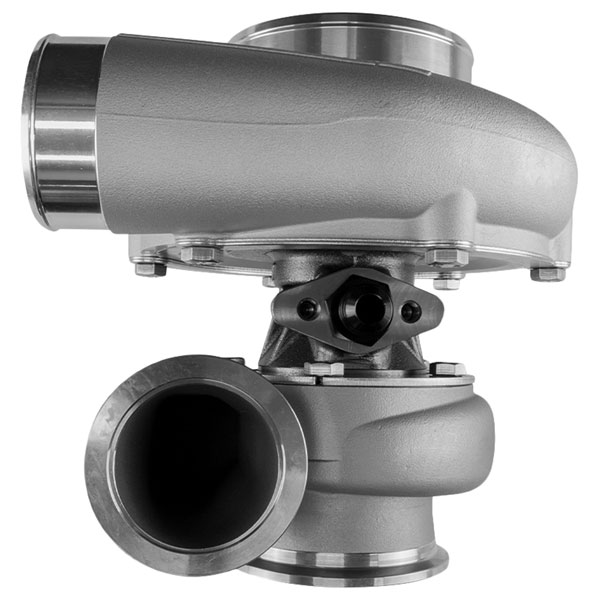

The 6266B frame has a 62mm compressor inducer coupled to a 62mm turbine exducer with a 0.82 A/R ratio, giving it a horspower rating of 650-800 HP. The V-band flange exhaust mount (2.25" inlet and 3" exit) makes it easy to mount and dismount. The 4" OD compressor inlet ensures an ample supply of intake air, and the 2.5" OD compressor outlet makes it easy to adapt to many intake systems. Weighs 14.3 lb (6.5kg).
The oil inlet has a male 4AN (7/16-20 UNF, 37° convex flare) fitting, and the oil outlet has a male 8AN (3/4-16 UNF, 37° flare) fitting. Kit includes weld flanges and V-band clamps for exhaust inlet and outlet. A paper gasket is also included for conversion of the oil outlet to a standard 2-bolt flange (flange fitting not included). An external wastegate (sold separately) is required with this turbo.
Note: This product is not designed or sold for use on pollution-controlled vehicles (not CARB excempt for use in CA). It is for competition use only.
