Brand: TURBOSMART
| This item qualifies for FREE Shipping in the continental United States! |

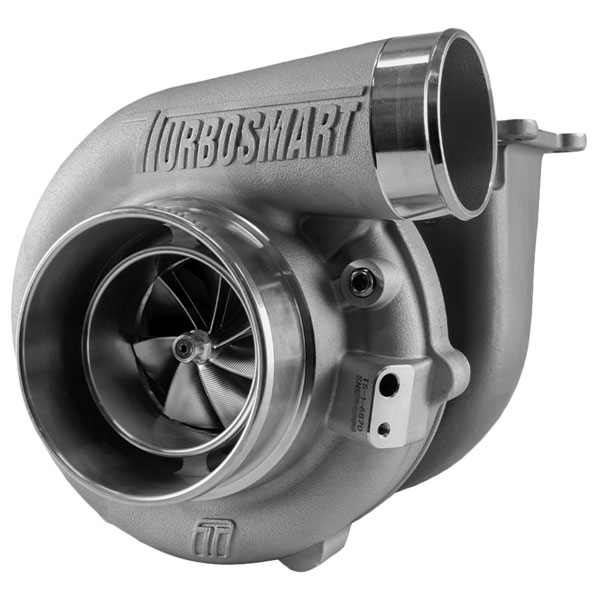

The TS-1 Series turbochargers from Turbosmart feature the simplicity and lightness of oil cooling, making it easy to bolt on horsepower. The competition-proven cast 310S stainless steel housings hide a unique dual-ceramic bearing and main shaft assembly that has been designed for the lowest possible rotating mass, meaning quicker spool-up and better response.

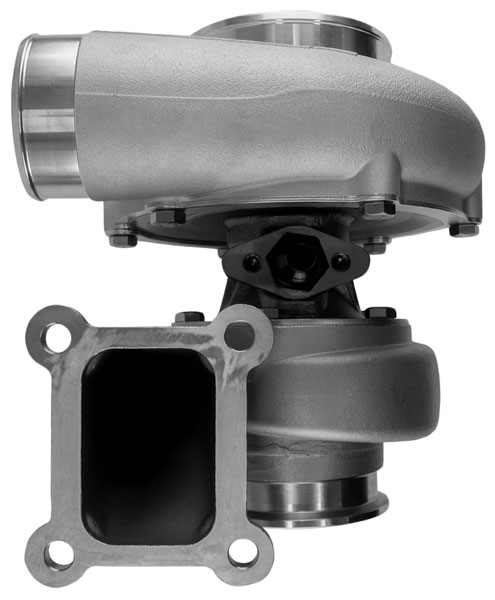

The 6870B ("Kompact") frame has a 68mm compressor inducer coupled to a 70mm turbine exducer. This version has a 0.82 A/R ratio, giving it a horspower rating of 850-990 HP. The T4 exhaust inlet and 3" V-band flange exhaust outlet make it easy to bolt in place of many existing turbos. The 4" OD compressor inlet ensures an ample supply of intake air, and the 2.5" OD compressor outlet makes it easy to adapt to many intake systems. Weighs 14.8 lb (6.7kg).
The oil inlet has a male 4AN (7/16-20 UNF, 37° convex flare) fitting, and the oil outlet has a male 8AN (3/4-16 UNF, 37° flare) fitting. Kit includes V-band weld flange and clamp for the exhaust outlet. A paper gasket is also included for conversion of the oil outlet to a standard 2-bolt flange (flange fitting not included). An external wastegate (sold separately) is required with this turbo.
Note: This product is not designed or sold for use on pollution-controlled vehicles (not CARB excempt for use in CA). It is for competition use only.
