Brand: AIM Sports

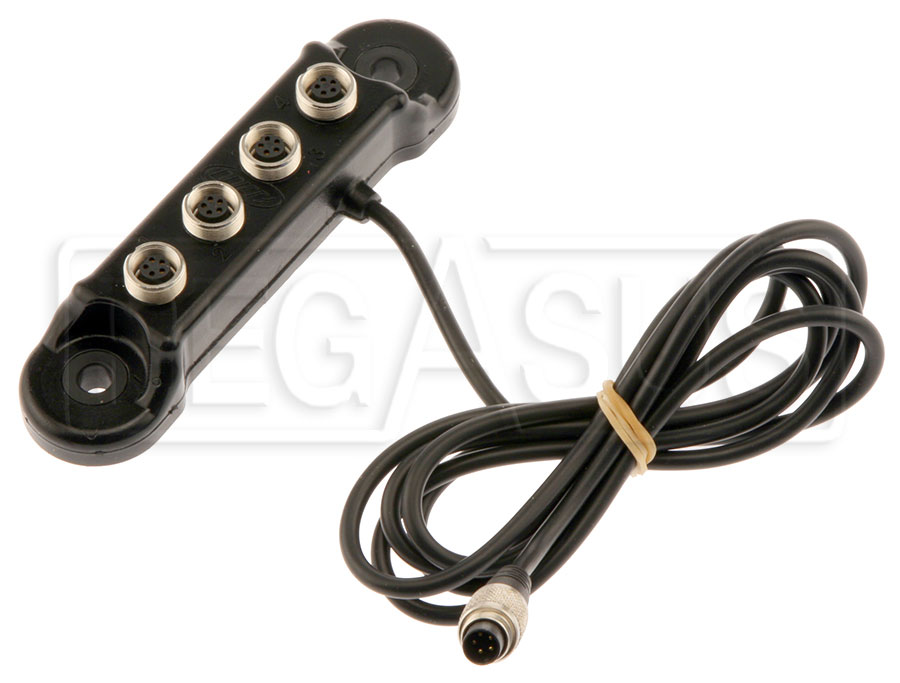

Extend the capabilities of your AiM data logger without occupying any more channels or running more cables to your dash. Connect up to four CAN peripherals to each Data Hub. You can even "stack" Data Hubs, connecting up to four more hubs to each hub, multiplying the number of available connections! Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (Thermocouple) Hubs. Any channel can be selected for display on the dash. 40cm (15") cable.
Connection example 1:
Use a single Data Hub to connect a SmartyCam HD to an MXL2/MXG/MXS dash. Connect the Data Hub to the CAN input cable ("EXP") on the dash harness. then connect the GPS unit and the SmartyCam HD to the Data Hub.
Connection example 2:
A V-8 engined car with EGT on every cylinder, two CHTs on each cylinder bank, one Lambda sensor on each cylinder bank, GPS, and a Memory Key would need three TC Hubs and two Data Hubs. The EGT and CHT thermocouples would all connect to the three TC Hubs. The TC Hubs and the GPS can all be connected to one Data Hub. That Data Hub would be connected, along with the two Lambda controllers and Memory Key, to a second Data Hub which would be connected to the dash or data logger. Sixteen channels are monitored in addition to the channels still available in the dash or data logger!
Works with any CAN-enabled AiM Auto data logger, including MXL (Strada/Pista/Pro/Pro05), MXL2, MXG/MXS, MXS Strada, EVO3, EVO4, EVO4S, and EVO5.
