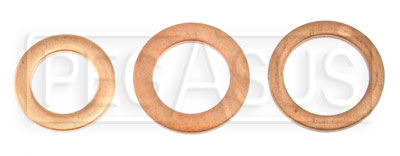

Soft Copper Crush Washer

Click for a larger picture of Soft Copper Crush Washer
Click for a larger picture of Soft Copper Crush Washer
View Catalog Page in PDF format

Our soft annealed Copper Crush Washers are ideal for sealing steel or stainless steel brake unions. Both the fitting and mating port must have adequately large flat sealing surfaces to ensure a reliable seal. Our minimum hex size recommendations are shown in the table below.

Sold individually.

Copper Crush Washer Dimensions
ID (Nominal) OD Thickness Minimum Hex Size
5/16" / 8mm 0.435" / 11mm 3/64" / 1.2mm 7/16" / 11mm
3/8" / 10mm 0.585" / 15mm 3/64" / 1.2mm 9/16" / 15mm
7/16" / 11.1mm 5/8" / 16mm 1/16" / 1.6mm 9/16" / 15mm
1/2" / 12.7mm 11/16" / 17.5mm 1/16" / 1.6mm 5/8" / 16mm
M14 / 9/16" 18.4mm / 0.725" 1.2mm / 3/64" 16mm / 5/8"

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Stock Status

3241-5/16
Condition: New
SKU: 57981

Soft Copper Crush Washer, 5/16 (or 8mm) inch ID

1 to 11: $0.40

12 to 149: $0.36

150 & up: $0.32

In Stock

3241-3/8
Condition: New
SKU: 28640

Soft Copper Crush Washer, 3/8 inch (or 10mm) ID

1 to 11: $0.39

12 to 149: $0.36

150 to 1999: $0.32

2000 & up: call

In Stock

3241-7/16
Condition: New
SKU: 28641

Soft Copper Crush Washer, 7/16 inch ID

1 to 11: $0.89

12 to 149: $0.79

150 to 1999: $0.68

2000 & up: call

In Stock

3241-1/2
Condition: New
SKU: 41708

Soft Copper Crush Washer, 1/2 inch ID

1 to 11: $0.99

12 to 149: $0.88

150 to 1999: $0.76

2000 & up: call

In Stock

3241-14MM
Condition: New
SKU: 82736

Soft Copper Crush Washer, 14mm (or 9/16) ID

1 to 9: $1.47

10 & up: $1.31

In Stock
