Brand: Aurora Bearing Company

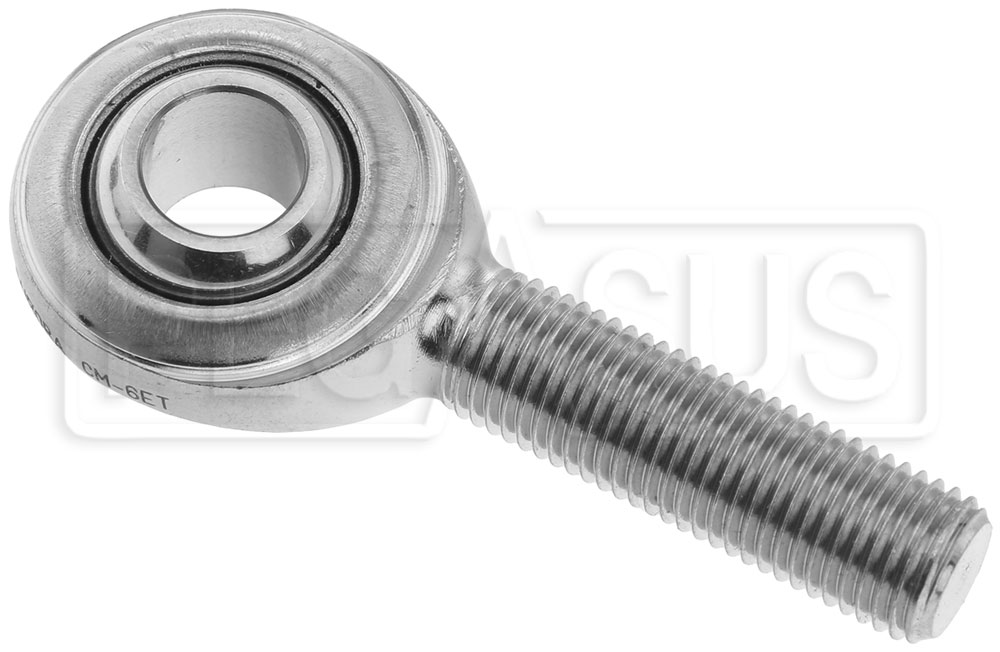

With radial load strength ratings similar to our High-Strength Alloy Steel Rod Ends (Part No. 3062), these male threaded rod ends add corrosion resistance for long life in applications exposed to the elements.
The body and race are both made of 17-4 PH stainless steel, and the chrome-plated ball is made of heat-treated 440 C stainless steel. A self-lubricating PTFE lining eliminates the need to grease or oil these rod ends. Male threaded shanks only. Aurora CM-ET series (right hand threads) and CB-ET series (left hand threads). Sold individually.
| Aurora PTFE Lined Stainless Steel Male Rod Ends - CM-ET (RH) / CB-ET (LH) Series |
|---|
Bore +.0015"/
−.0005" | Thread (UNF-3A) | Thread Length +.062"/
−.031" | Center of Bore to End of Shank +∕‑.015" | Ball Width +.000"/
−.005" | Head Thickness (Ref) | Head OD (Ref) | Max Angle | Weight, oz (Approx) | Radial Static Load Rating | Part No. |
|---|
| 3/8" | 3/8-24 | 1.250" | 1.938" | 0.500" | 0.359" | 1.0" | 22° | 1.8 | 8627 lb | AB‑CMET‑6‑R or ‑6‑L |
|---|
| 1/2" | 1/2-20 | 1.500" | 2.438" | 0.625" | 0.453" | 1.312" | 20° | 3.8 | 15,130 lb | AB‑CMET‑8‑R or ‑8‑L |
|---|
