Brand: Induction Technology Group

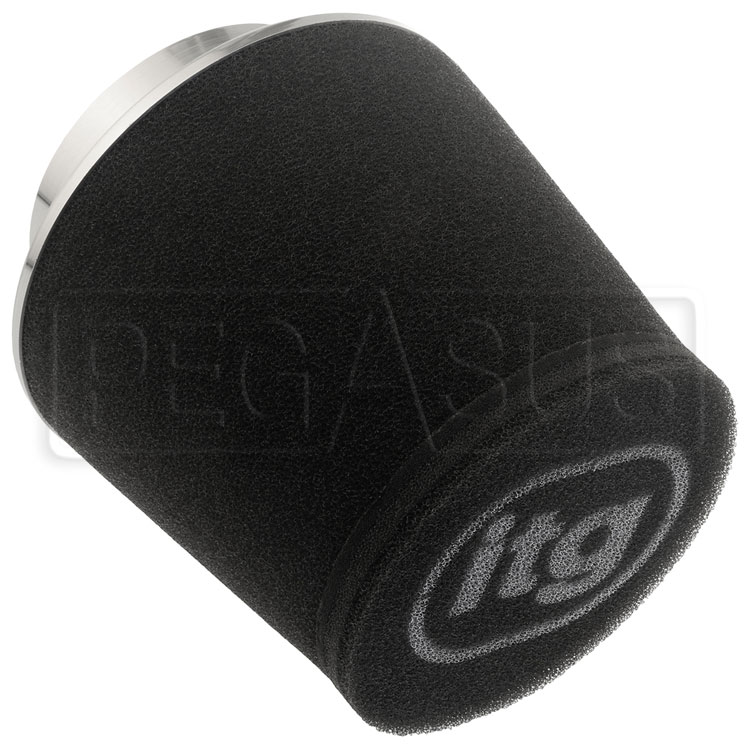

ITG JC60 "Large Cone" air filters are built on a spun aluminum air horn that can easily be adapted to many different installations. They use the well-known ITG filtration foam over a plastic support cage. With foam all around, these filters are ideal for use either open or inside an airbox.
The foam portion on all JC60-CL filters measures 180mm (7.09") OD at the base, 149mm (5.87") OD at the top, and 163mm (6.42") tall. Sold individually.
| ITG JC60-CL Filter Dimensions |
|---|
| ITG Part No. | Neck ID | Neck OD | Airhorn Height | Overall Height | Pegasus Part No. |
|---|
| JC60/80CL | 80mm (3.15") | 83mm (3.39") | 55mm (2.16") | 218mm (8.58") | ITG-JC60CL-80 |
|---|
| JC60/86CL | 86mm (3.39") | 89mm (3.50") | 53mm (2.09") | 216mm (8.50") | ITG-JC60CL-86 |
|---|
| JC60/93CL | 93mm (3.66") | 96mm (3.78") | 50mm (1.97") | 213mm (8.39") | ITG-JC60CL-93 |
|---|
| JC60/99CL | 99mm (3.90") | 102mm (4.01") | 50mm (1.97") | 213mm (8.39") | ITG-JC60CL-99 |
|---|
| JC60/114CL | 114mm (4.49") | 117mm (4.61") | 45mm (1.77") | 208mm (8.19") | ITG-JC60CL-114 |
|---|
| JC60/124CL | 124mm (4.88") | 127mm (5.00") | 40mm (1.57") | 203mm (7.99") | ITG-JC60CL-124 |
|---|
