Click on the tracing to enlarge
Click on the HB number for details on that pad
Click on "Compound" for descriptions of the different Hawk Brake friction materials
| Manufacturer | Caliper | Hawk Pad | Image |
|---|---|---|---|
| Aerospace Components | 2 Piston | HB104-Compound-.485 |  |
| Aerospace Components | 4 Piston | HB100-Compound-.480 |  |

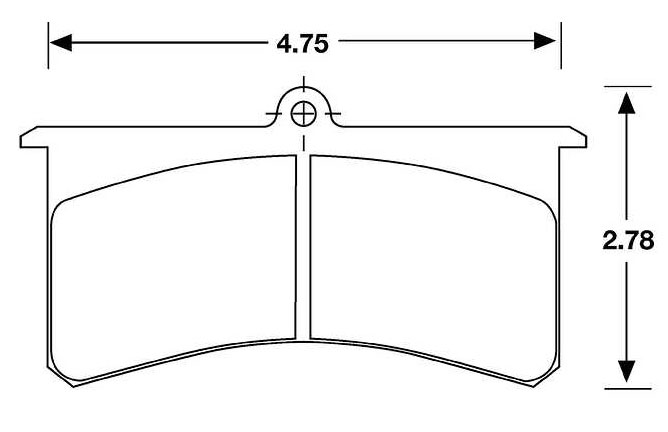

| Aerospace Components | GT | HB101-Compound-.800 |  |
| Aerospace Components | Single Floater | HB104-Compound-.485 | |
| Alcon | 4R-Type | HB118-Compound-.560 |  |
| Alcon | B-Type | HB105-Compound-.775 |  |
| Alcon | CAR22 48mm Radial Depth | HB351-Compound-.620 |  |

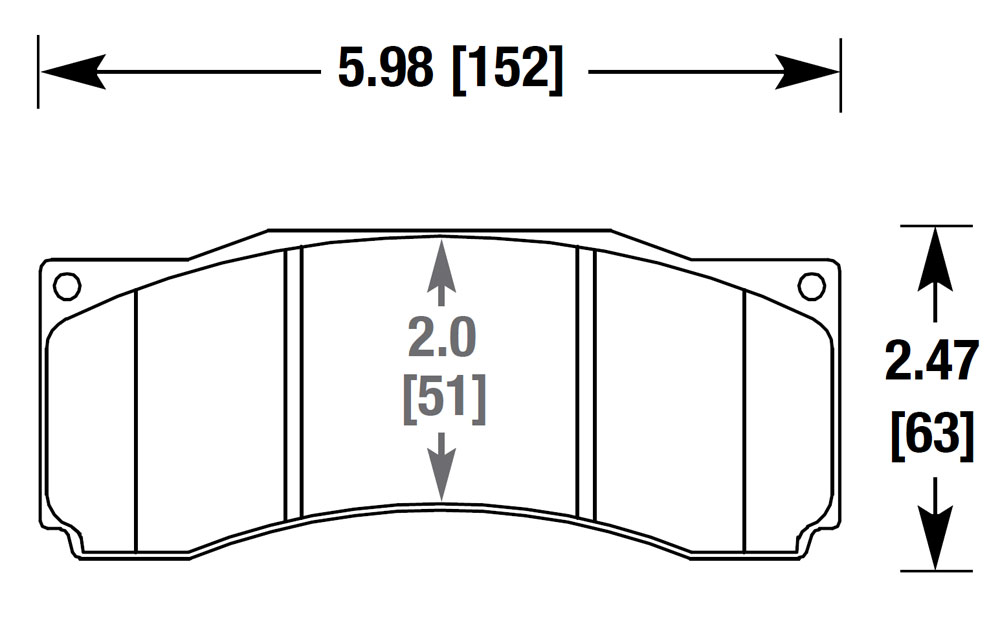

| Alcon | CAR89 51mm Radial Depth | HB122-Compound-.710 |  |
| Alcon | CAR89 51mm Radial Depth | HB688-Compound-.710 |  |
| Alcon | CAR94 | HB331-Compound-1.17 |  |
| Alcon | CAR95 | HB349-Compound-1.18 | |
| Alcon | DP88 | HB349-Compound-1.18 | |
| Alcon | H-Type | HB192-Compound-.620 |  |
| Alcon | L-Type | HB167-Compound-.778 |  |
| Alcon | MB4 | HB105-Compound-.775 | |
| Alcon | RC4498X600 | HB655-Compound-.620 |  |
| Alcon | R-Type | HB118-Compound-.560 | |
| Alcon | TA-4 | HB184-Compound-.650 |  |
| Alcon | TA-4 | HB184-Compound-.710 | |
| Alcon | TA-6 | HB109-Compound-.710 |  |
| Alcon | TA-6+ | HB349-Compound-1.18 | |
| Alcon | TPC | HB221-Compound-1.18 |  |
| Alcon | XF-Type (Scalloped) | HB224-Compound-1.12 |  |
| Alcon | XR-6 | HB109-Compound-1.12 | |
| Alcon | XT | HB238-Compound-1.18 |  |
| Alcon | XT-4 | HB238-Compound-1.18 | |
| Alcon | XT-6 | HB238-Compound-1.18 | |
| AP Racing | CP2279 | HB110-Compound-.775 |  |
| AP Racing | CP2361 | HB107-Compound-.620 |  |
| AP Racing | CP2485 | HB108-Compound-.560 |  |
| AP Racing | CP2505 | HB117-Compound-.380 |  |
| AP Racing | CP2561 | HB108-Compound-.560 | |
| AP Racing | CP2576 | HB108-Compound-.560 | |
| AP Racing | CP2577 | HB108-Compound-.560 | |
| AP Racing | CP3176 | HB108-Compound-.560 | |
| AP Racing | CP3177 | HB108-Compound-.560 | |
| AP Racing | CP3178 | HB108-Compound-.560 | |
| AP Racing | CP3228 | HB107-Compound-.620 | |
| AP Racing | CP3307 | HB110-Compound-.654 | |
| AP Racing | CP3676 | HB108-Compound-.560 | |
| AP Racing | CP3677 | HB108-Compound-.560 | |
| AP Racing | CP3696 | HB117-Compound-.380 | |
| AP Racing | CP3788 | HB110-Compound-.775 | |
| AP Racing | CP3789 | HB110-Compound-.775 | |
| AP Racing | CP4567 | HB192-Compound-.620 | |
| AP Racing | CP4586 | HB108-Compound-.560 | |
| AP Racing | CP4596 | HB108-Compound-.560 | |
| AP Racing | CP5020 | HB108-Compound-.560 | |
| AP Racing | CP5040-10/11/12/13S4 | HB192-Compound-.620 | |
| AP Racing | CP5040-20/21/22/23S4 | HB114-Compound-.980 |  |
| AP Racing | CP5040-30/31/32/33S4 | HB114-Compound-.980 | |
| AP Racing | CP5040-5S4 | HB110-Compound-.654 | |
| AP Racing | CP5060-10/11/12/13ST | HB122-Compound-.710 | |
| AP Racing | CP5060-10/11/12/13ST | HB688-Compound-.710 | |
| AP Racing | CP5060-2/3/4/5ST | HB109-Compound-.710 | |
| AP Racing | CP5100 | HB192-Compound-.620 | |
| AP Racing | CP5104 | HB107-Compound-.620 | |
| AP Racing | CP5108 | HB192-Compound-.620 | |
| AP Racing | CP5144 | HB107-Compound-.620 | |
| AP Racing | CP5211 | HB108-Compound-.560 | |
| AP Racing | CP5311 | HB108-Compound-.560 | |
| AP Racing | CP5420 | HB167-Compound-.778 | |
| AP Racing | CP5421 | HB167-Compound-.778 | |
| AP Racing | CP5510 | HB167-Compound-.778 | |
| AP Racing | CP5515 | HB167-Compound-.778 | |
| AP Racing | CP5555 | HB109-Compound-.710 | |
| AP Racing | CP5570 | HB122-Compound-.710 | |
| AP Racing | CP5570 | HB688-Compound-.710 | |
| AP Racing | CP5610 | HB167-Compound-.778 | |
| AP Racing | CP5810 | HB109-Compound-.980 | |
| AP Racing | CP5835 | HB110-Compound-.775 | |
| AP Racing | CP5842 | HB331-Compound-1.17 | |
| AP Racing | CP5845 | HB331-Compound-1.17 | |
| AP Racing | CP5845 | HB331-Compound-.854 | |
| AP Racing | CP5846 | HB105-Compound-.980 | |
| AP Racing | CP5847 | HB105-Compound-.980 | |
| AP Racing | CP5880 | HB110-Compound-.775 | |
| AP Racing | CP5890 | HB109-Compound-.980 | |
| AP Racing | CP5895 | HB109-Compound-.980 | |
| AP Racing | CP6078 | HB109-Compound-.980 | |
| AP Racing | CP6120 | HB171-Compound-.590 |  |
| AP Racing | CP6121 | HB171-Compound-.590 | |
| AP Racing | CP6600 | HB585-Compound-.660 | |
| AP Racing | CP6760 | HB192-Compound-.620 | |
| AP Racing | CP7040 | HB586-Compound-.660 | |
| AP Racing | CP7600 | HB587-Compound-.630 |  |
| AP Racing (Essex) | CP4751 (SC200) | HB101-Compound-.800 | |
| AP Racing (Essex) | CP4761 (SC200) | HB101-Compound-.800 | |
| AP Racing (Essex) | CP5200 (SC250) | HB110-Compound-.654 | |
| AP Racing (Essex) | CP5260 (SC660) | HB109-Compound-.980 | |
| AP Racing (Essex) | CP5270 (SC670) | HB109-Compound-.980 | |
| AP Racing (Essex) | CP5410 (SC240) | HB167-Compound-.778 | |
| AP Racing (Essex) | CP5751 (SC300) | HB101-Compound-.800 | |
| AP Racing (Essex) | CP5755 (SC100) | HB237-Compound-.625 |  |
| AP Racing (Essex) | CP5756 (SC100) | HB237-Compound-.625 | |
| AP Racing (Essex) | CP5757 (SC100) | HB237-Compound-.625 | |
| AP Racing (Essex) | CP5805 (SC360/560) | HB102-Compound-.800 |  |
| AP Racing (Essex) | CP5810 (SC660) | HB109-Compound-1.12 | |
| AP Racing (Essex) | CP5820 (SC680) | HB331-Compound-1.17 | |
| AP Racing (Essex) | CP5830 (SC430) | HB110-Compound-.775 | |
| AP Racing (Essex) | CP5850 (SC675) | HB221-Compound-1.10 | |
| AP Racing (Essex) | CP5890 (SC670) | HB109-Compound-1.12 | |
| AP Racing (Essex) | CP6751 (SC275) | HB101-Compound-.800 | |
| AP Racing (Essex) | CP6761 (SC275) | HB101-Compound-.800 | |
| AP Racing (Essex) | CP7751 (SC400) | HB101-Compound-.800 | |
| Baer | 6S | HB122-Compound-.710 | |
| Baer | 6S | HB688-Compound-.710 | |
| Baer | Alumisport | HB509-Compound-.678 | |
| Baer | GT | HB247-Compound-.575 |  |
| Baer | GT Plus | HB247-Compound-.575 | |
| Baer | Sport (Front) | HB111-Compound-.610 |  |
| Baer | Sport (Rear) | HB112-Compound-.540 |  |
| Baer | SS (Front) | HB111-Compound-.610 | |
| Baer | SS (Rear) | HB112-Compound-.540 | |
| Baer | Track (Front) | HB111-Compound-.610 | |
| Baer | Track (Rear) | HB112-Compound-.540 | |
| Brakeman | F1 Tornado | HB117-Compound-.380 | |
| Brakeman | F2 Tornado | HB108-Compound-.560 | |
| Brakeman | F3 Tornado | HB100-Compound-.480 | |
| Brakeman | F3 Tornado | HB100-Compound-.625 | |
| Brakeman | F4 Tornado | HB101-Compound-.800 | |
| Brakeman | Replacement Metric Style Caliper | HB119-Compound-.594 |  |
| Brembo | 20.5272.12/22 | HB194-Compound-.570 |  |
| Brembo | 20.7958.10/20 | HB186-Compound-.854 | |
| Brembo | 20.7958.30/40 | HB168-Compound-.770 | |
| Brembo | 20.8271.10/40 | HB130-Compound-1.018 |  |
| Brembo | 20.8330.10/20 | HB130-Compound-1.018 | |
| Brembo | 20.8330.30/40 | HB130-Compound-1.097 | |
| Brembo | 20.8643.23/28/29 | HB193-Compound-.670 |  |
| Brembo | 20.8644.10/22/23 | HB193-Compound-.670 | |
| Brembo | Big Red | HB184-Compound-.650 | |
| Brembo | F-40 | HB193-Compound-.670 | |
| Brembo | GT3R 4 Piston | HB184-Compound-.710 | |
| Brembo | NASCAR Front | HB221-Compound-1.18 | |
| Brembo | NASCAR Front | HB331-Compound-1.17 | |
| Brembo | NASCAR Rear | HB167-Compound-.778 | |
| Brembo | S4 | HB141-Compound-.650 |  |
| Brembo | X2.023.21/24 | HB130-Compound-.775 | |
| Brembo | X2.028.01/04 | HB130-Compound-.775 | |
| Brembo | X2.029.21/24 | HB167-Compound-.778 | |
| Brembo | X2.029.71/74 | HB167-Compound-.778 | |
| Brembo | X2.040.01/04 | HB351-Compound-.620 | |
| Brembo | X6.059.41/44 | HB167-Compound-.778 | |
| Brembo | X6.L4.01/04 | HB331-Compound-1.17 | |
| Brembo | X9.011.01/04 | HB167-Compound-.778 | |
| Brembo | X9.011.31/34 | HB167-Compound-.778 | |
| Brembo | X9.060.51/54 | HB130-Compound-1.018 | |
| Brembo | X9.060.71/74 | HB130-Compound-.980 | |
| Brembo | X9.066.91/94 | HB351-Compound-.620 | |
| Brembo | X93.41.21/24 | HB186-Compound-.770 | |
| Brembo | X93.45.11/14 | HB221-Compound-1.18 | |
| Brembo | X94.75.11/14 | HB351-Compound-.620 | |
| Brembo | X96.14.01/04 | HB167-Compound-.778 | |
| Brembo | X97.24.01 | HB172-Compound-.595 |  |
| Brembo | X97.24.10 | HB172-Compound-.595 | |
| Brembo | X97.24.21 | HB172-Compound-.595 | |
| Brembo | X97.24.31 | HB172-Compound-.595 | |
| Brembo | X97.24.51 | HB172-Compound-.595 | |
| Brembo | X97.24.61 | HB172-Compound-.595 | |
| Brembo | X97.60.21/24 | HB168-Compound-.770 | |
| Brembo | X97.60.41/44 | HB105-Compound-.620 | |
| Brembo | X97.60.81/84 | HB105-Compound-.620 | |
| Brembo | X98.A8.41/44 | HB105-Compound-.620 | |
| Brembo | X98.A8.41/44 | HB208-Compound-.620 |  |
| Brembo | XA0.80.51/54 | HB105-Compound-.708 | |
| Brembo | XA0.80.51/54 | HB208-Compound-.708 | |
| Brembo | XA1.37.11/14 | HB208-Compound-.708 | |
| Brembo | XA2.30.11/14 | HB167-Compound-.620 | |
| Brembo | XA2.30.21/24 | HB167-Compound-.620 | |
| Brembo | XA2.86.31/34 | HB167-Compound-.620 | |
| Brembo | XA2.86.83/84 | HB348-Compound-1.14 | |
| Brembo | XA2.E5.01/04 | HB105-Compound-.775 | |
| Brembo | XA2.E5.01/04 | HB208-Compound-.787 | |
| Brembo | XA2.E5.11/14 | HB105-Compound-.775 | |
| Brembo | XA2.E5.11/14 | HB208-Compound-.787 | |
| Brembo | XA2.E6.11/14 | HB105-Compound-.620 | |
| Brembo | XA2.E6.11/14 | HB208-Compound-.620 | |
| Brembo | XA2.E6.31/34 | HB105-Compound-.620 | |
| Brembo | XA2.E6.31/34 | HB208-Compound-.620 | |
| Brembo | XA2.E6.51/54 | HB105-Compound-.620 | |
| Brembo | XA2.E7.01/04 | HB105-Compound-.980 | |
| Brembo | XA2.E7.11/14 | HB105-Compound-.980 | |
| Brembo | XA3.02.11/12 | HB348-Compound-1.14 | |
| Brembo | XA3.02.21/22 | HB348-Compound-1.14 | |
| Brembo | XA3.02.31/32 | HB348-Compound-1.14 | |
| Brembo | XA3.02.41/42 | HB348-Compound-1.14 | |
| Brembo | XA3.A4.01/04 | HB167-Compound-.778 | |
| Brembo | XA3.A4.41/44 | HB167-Compound-.778 | |
| Brembo | XA3.B7.51/54 | HB348-Compound-1.14 | |
| Brembo | XA3.G2.11/14 | HB167-Compound-.778 | |
| Brembo | XA4.10.01/04 | HB351-Compound-.620 | |
| Brembo | XA4.67.51/54 | HB208-Compound-.866 | |
| Brembo | XA4.C6.11/14 | HB208-Compound-.866 | |
| Brembo | XA4.D3.01/04 | HB130-Compound-.980 | |
| Brembo | XA4.F1.01/02 | HB348-Compound-1.14 | |
| Brembo | XA4.F1.11/12 | HB348-Compound-1.14 | |
| Brembo | XA4.F1.21/22 | HB348-Compound-1.14 | |
| Brembo | XA4.F1.31/32 | HB348-Compound-1.14 | |
| Brembo | XA5.09.01/04 | HB208-Compound-.708 | |
| Brembo | XA5.90.01/04 | HB105-Compound-.775 | |
| Brembo | XA5.C2.01/02 | HB348-Compound-1.14 | |
| Brembo | XA6.61.01/04 | HB348-Compound-1.14 | |
| Brembo | XA6.H7.01/02 | HB348-Compound-1.14 | |
| Brembo | XA6.H7.11/14 | HB105-Compound-.775 | |
| Brembo | Caliper Family A | HB194-Compound-.570 | |
| Brembo | Caliper Family B | HB193-Compound-.670 | |
| Brembo | Caliper Family C | HB194-Compound-.570 | |
| Brembo | Caliper Family E | HB194-Compound-.570 | |
| Brembo | Caliper Family F | HB194-Compound-.570 | |
| Brembo | Caliper Family G | HB609-Compound-.572 |  |
| Brembo | Caliper Family H | HB193-Compound-.670 | |

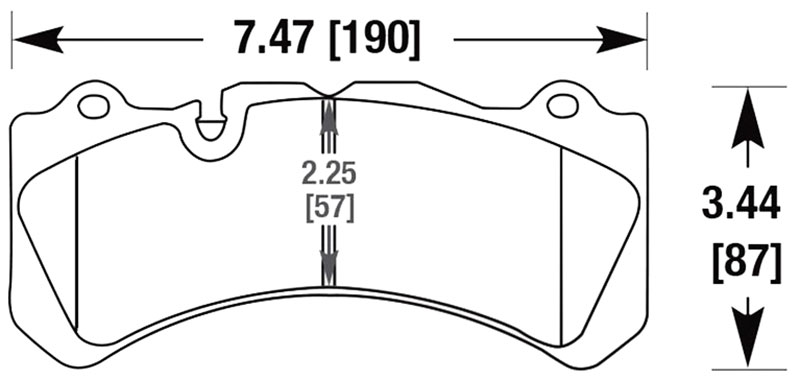

| Brembo | Caliper Family J | HB581-Compound-.660 |  |
| Brembo | Caliper Family M | HB582-Compound-.660 | |
| Brembo | Caliper Family N | HB581-Compound-.660 | |
| Brembo | Caliper Family P | HB193-Compound-.670 | |
| Brembo | B10 | HB605-Compound-.625 |  |
| Carbone Lorraine | 4012 | HB653-Compound-.606 | |
| CNC | 623 | HB104-Compound-.485 | |
| CNC | 624 | HB100-Compound-.480 | |
| CNC | 625 | HB100-Compound-.480 | |
| CNC | 626 | HB100-Compound-.480 | |
| CNC | 627 | HB101-Compound-.800 | |
| CNC | 630 | HB102-Compound-.800 | |
| CNC | 631 | HB102-Compound-.800 | |
| CNC | 633 | HB102-Compound-.800 | |
| CNC | 636 | HB101-Compound-.800 | |
| CNC | 642 | HB100-Compound-.480 | |
| CNC | 643 | HB100-Compound-.480 | |
| CNC | 644 | HB104-Compound-.485 | |
| CNC | 645 | HB104-Compound-.485 | |
| CNC | 648 | HB100-Compound-.480 | |
| CNC | 651 | HB104-Compound-.485 | |
| CNC | 652 | HB104-Compound-.485 | |
| CNC | 654 | HB101-Compound-.800 | |
| CNC | 664 | HB100-Compound-.480 | |
| CNC | 672 | HB104-Compound-.485 | |
| CNC | 674 | HB100-Compound-.480 | |
| Coleman | GM Metric | HB119-Compound-.594 | |
| Coleman | Series I | HB101-Compound-.800 | |
| Coleman | Series II | HB101-Compound-.800 | |
| Coleman | Series III | HB105-Compound-.708 | |
| Coleman | Series III | HB105-Compound-.775 | |
| Coleman | Series III | HB105-Compound-.980 | |
| Coleman | Series IV | HB109-Compound-.710 | |
| Coleman | Series IV | HB109-Compound-.980 | |
| Coleman | Series IV | HB109-Compound-1.12 | |
| Mark Williams | 81100 | HB237-Compound-.625 | |
| Mark Williams | 82100 | HB237-Compound-.480 | |
| Mark Williams | 83100 | HB104-Compound-.485 | |
| Outlaw | 1000 | HB104-Compound-.485 | |
| Outlaw | 2000 | HB100-Compound-.480 | |
| Outlaw | 2800 | HB237-Compound-.625 | |
| Outlaw | 3000 | HB101-Compound-.800 | |
| Outlaw | 4000 | HB101-Compound-.800 | |
| Outlaw | 4000XD | HB101-Compound-.800 | |
| Outlaw | GM | HB103-Compound-.590 |  |
| Outlaw | Inboard Sprint Car Caliper | HB237-Compound-.625 | |
| Outlaw | M-16 | HB237-Compound-.625 | |
| Red Devil | 300 Series | HB101-Compound-.800 | |
| Red Devil | 600 Series - Short Track | HB238-Compound-1.18 | |
| Red Devil | Single Piston Floater | HB104-Compound-.485 | |
| Rotora | FC2 | HB180-Compound-.560 |  |
| Rotora | FC4 | HB193-Compound-.610 | |
| Rotora | FF4 | HB105-Compound-.620 | |
| Rotora | FC6 | HB109-Compound-.710 | |
| Rotora | FC8 | HB609-Compound-.572 | |
| Sierra / JFZ | GM Series | HB103-Compound-.590 | |
| Sierra / JFZ | GN Series | HB102-Compound-.800 | |
| Sierra / JFZ | MGN Dual | HB100-Compound-.480 | |
| Sierra / JFZ | MGN Single | HB104-Compound-.485 | |
| Sierra / JFZ | XL Series | HB101-Compound-.800 | |
| Stop Tech | ST-10 | HB405-Compound-.543 | |
| Stop Tech | ST-20 | HB266-Compound-.650 |  |
| Stop Tech | ST-22 | HB180-Compound-.560 | |
| Stop Tech | ST-40 / STR-40 | HB141-Compound-.650 | |
| Stop Tech | ST-45 | HB141-Compound-.650 | |
| Stop Tech | ST-50 | HB141-Compound-.650 | |
| Stop Tech | ST-60 | HB122-Compound-.710 | |
| Stop Tech | ST-60 | HB688-Compound-.710 | |
| Strange | 2 Piston | HB104-Compound-.485 | |
| Strange | 4 Piston - Cotter Pin | HB100-Compound-.480 | |
| Strange | S-Series Caliper | HB583-Compound-.480 | |
| US Brake | DL Single | HB104-Compound-.485 | |
| US Brake | F22i | HB237-Compound-.480 | |
| US Brake | F22i | HB237-Compound-.625 | |
| US Brake | F33i | HB100-Compound-.480 | |
| US Brake | F88i | HB101-Compound-.800 | |
| US Brake | Oversize Metric GM | HB119-Compound-.594 | |
| US Brake | Standard GM | HB103-Compound-.590 | |
| US Brake | Stock Metric GM | HB119-Compound-.594 | |
| Wilwood | BDL w/ Bridgebolt | HB541-Compound-.490 |  |
| Wilwood | BDL w/ Cotter pin | HB540-Compound-.490 |  |
| Wilwood | Billet Dynalite w/bridge bolt | HB541-Compound-.490 | |
| Wilwood | Billet Narrow Dynalite | HB541-Compound-.630 | |
| Wilwood | Billet Radial Narrow Dynalite | HB541-Compound-.630 | |
| Wilwood | DLSF | HB104-Compound-.485 | |
| Wilwood | Dynalite | HB100-Compound-.480 | |
| Wilwood | Dynalite Single | HB104-Compound-.485 | |
| Wilwood | Dynalite w/ Bridgebolt | HB237-Compound-.480 | |
| Wilwood | Dynalite w/ Bridgebolt | HB237-Compound-.625 | |
| Wilwood | DynaPro Lug Mount | HB542-Compound-.490 |  |
| Wilwood | Dynapro Lug Mount Forged Billet | HB542-Compound-.490 | |
| Wilwood | Dynapro Narrow Mount | HB542-Compound-.600 | |
| Wilwood | DynaPro NDL | HB542-Compound-.600 | |
| Wilwood | Forged Narrow Mount Dynalite w/ Bridgebolt | HB542-Compound-.600 | |
| Wilwood | Dynapro Radial Mount Billet | HB542-Compound-.600 | |
| Wilwood | DynaPro 6 (Type 6712) | HB645-Compound-.490 |  |
| Wilwood | FDL | HB540-Compound-.490 | |
| Wilwood | Forged Dynalite w/cotter pin | HB540-Compound-.490 | |
| Wilwood | GM Metric | HB119-Compound-.594 | |
| Wilwood | GMII, GM III | HB103-Compound-.590 | |
| Wilwood | GNIII | HB102-Compound-.800 | |
| Wilwood | GT 6000 - Radius | HB224-Compound-1.12 | |
| Wilwood | GT III - Radius | HB224-Compound-1.12 | |
| Wilwood | GT4000 | HB105-Compound-.708 | |
| Wilwood | Integra HP | HB221-Compound-1.10 | |
| Wilwood | Integra IP | HB130-Compound-.980 | |
| Wilwood | Integra LP | HB369-Compound-.980 | |
| Wilwood | IR-GT | HB351-Compound-.620 | |
| Wilwood | IR-GT | HB351-Compound-.778 | |
| Wilwood | IR-GTR4 | HB351-Compound-.778 | |
| Wilwood | LC-GT | HB101-Compound-.800 | |
| Wilwood | NDL | HB541-Compound-.630 | |
| Wilwood | Prolite | HB238-Compound-1.18 | |
| Wilwood | Superlite 4R | HB521-Compound-.800 |  |
| Wilwood | Superlite 6R | HB521-Compound-.800 | |
| Wilwood | Superlite II, III LC-GT | HB101-Compound-.800 | |
| Wilwood | Superlite SL4R | HB521-Compound-.800 | |
| Wilwood | Superlite ST | HB521-Compound-.800 | |
| Wilwood | Superlite-4/6, Forged | HB521-Compound-.800 | |
| Wilwood | Superlite-4/6, Forged, Thin | HB521-Compound-.650 | |
| Wilwood | 6812 | HB622-Compound-.490 |  |
Hawk Performance Brake Pad Compounds
Other ways to search for Hawk Brake Pads:
Hawk Brake Pad Application List by Car Make and Model
