Tilton 3000 Series Hydraulic Release Bearing, 44mm, 3.12" Ht

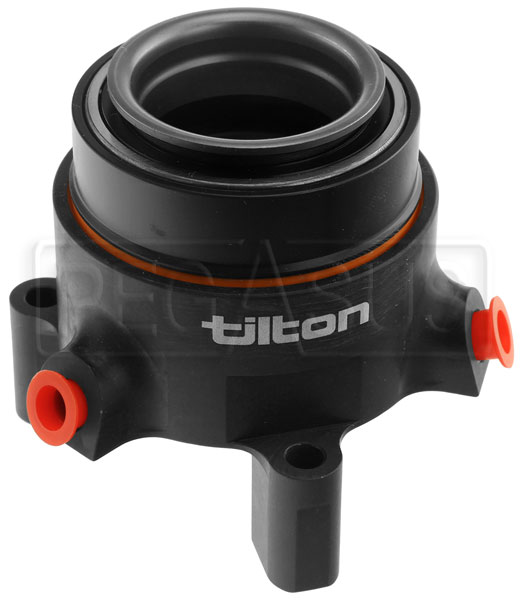

Click for a larger picture of Tilton 3000 Series Hydraulic Release Bearing, 44mm, 3.12" Ht

Brand: Tilton Engineering

This item qualifies for FREE Shipping in the continental United States!

This direct-acting throwout bearing eliminates all lost motion due to cable stretch or linkage flex. The compact size (just 3.07" - 3.12" high, 3" 3-bolt circle) makes it small enough to be adapted to almost any transmission including larger Hewland and Weismann units. Most applications will require fabrication of an adapter plate.

The radius-faced bearing has a 44mm contact diameter for clutches with a 1 5/8" diameter diaphragm spring hole. This includes most QuarterMaster 4.5", 5.5", and 7.25" racing clutches (except 7.25" LGC) and Tilton OT-II (7.25") Racing Clutches.

This version is designed for an overall height of 3.12" (79.2mm), but removing a shim under the bearing will reduce the height to 3.07" (78mm). Maximum travel is 0.70 inches, so a clutch pedal stop must be used to prevent damage to the clutch and the engine. Tilton recommends pairing this assembly with a 3/4" bore master cylinder (sold separately). Includes 3AN male adapters for inlet and outlet.

We also stock the Hydraulic Release Bearing Replacement 44mm Bearing (Part No. TE 62-031) and Tilton Hydraulic Release Bearing Rebuild Kit (Part No. 163-51).

Qty
Part No.
Price
Stock Status
TE 60-3230

Condition: New

$361.25
In Stock
