Brand: Aeromotive Fuel Systems
| This item qualifies for FREE Shipping in the continental United States! |

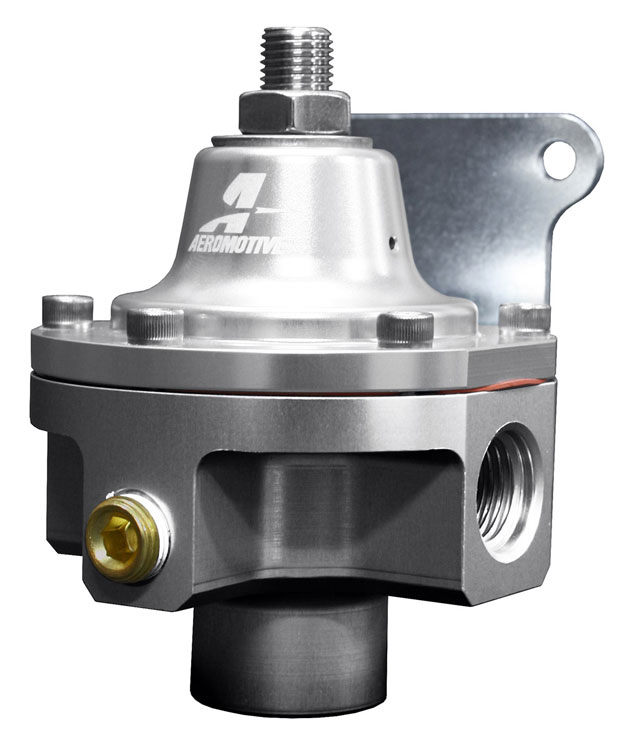

The Aeromotive Ultra-Low Pressure Regulator is specifically designed for carburetors that require very low fuel pressure (such as Weber, Solex, and Mikuni side-draft). It allows high fuel flow volume at very low pressures, with very little pressure creep -- even when used with a fuel pump putting out up to 20 psi!
This model can be set to between 1.5 and 5 psi. With the aid of an accurate pressure gauge, it can be easily adjusted as required within its specified range. The "deadhead" regulator type does not require a bypass return to the tank.
There is one -6 (9/16-18) O-Ring inlet port at the bottom and two -6 O-Ring outlet ports on the sides to aid the connection of multiple carbs (single carburetor applications should plug one of the outlet ports). A separate 1/8 NPT port (plugged from the factory) is also provided for a fuel pressure gauge (sold separately). The clear anodized aluminum body provides a very understated look that even looks at home in vintage cars. Made in USA.
Compatible with gasoline, alcohol blends to E-85, and diesel fuel.
