Brand: Tilton Engineering
| This item qualifies for FREE Shipping in the continental United States! |

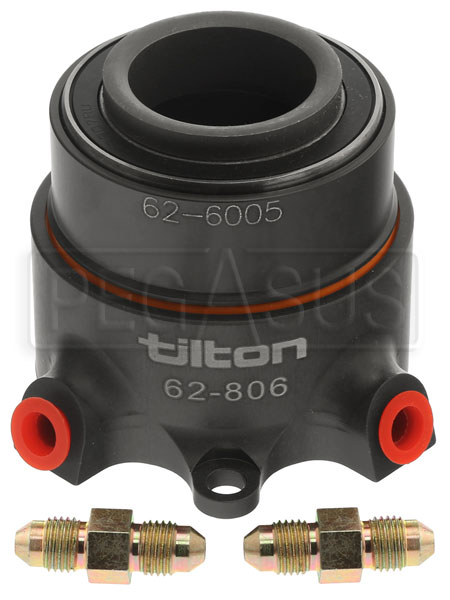

This direct-acting throwout bearing eliminates all lost motion due to cable stretch or linkage flex. The low profile (2.32" - 2.37" setup height*) makes it small enough to be adapted to many different installations. Most applications will require fabrication of an adapter plate.
The radius-faced bearing has a 38mm contact diameter for clutches with 1 3/8" diaphragm spring hole, including Tilton OT-V (4.5") clutches, Tilton OT-III (5.5") Clutches, and certain AP 5.5" carbon clutches (CP6913, CP6914, and CP7543 only). Maximum travel is 0.70 inches, so a clutch pedal stop must be used to prevent damage to the clutch and the engine. Tilton recommends pairing this assembly with a 5/8" bore master cylinder (sold separately).
We also stock the Hydraulic Release Bearing Replacement 38mm Bearing (Part No. TE 62-008) and Tilton Hydraulic Release Bearing Rebuild Kit (Part No. 163-51).
* A 0.05" shim under the bearing can be removed to change the height from 2.37" (as supplied) to 2.32" if needed.
