Brand: Tilton Engineering
| This item qualifies for FREE Shipping in the continental United States! |

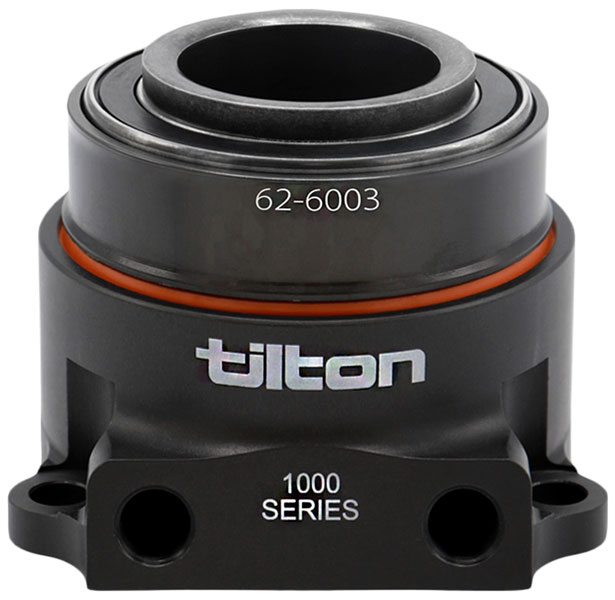

This direct-acting throwout bearing from Tilton eliminates all lost motion due to cable stretch or linkage flex. The compact size (just 2.12" - 2.17" high) makes it small enough to be adapted to almost any transmission including Hewland, Webster, and Weismann transaxles. Most applications will require fabrication of an adapter. The unequally-spaced holes and port positions mimic the design of the popular Saab 9000 HRB used in some vintage Formula A and Super Vee applications. (Note that the original Saab HRB had 12mm ports; the Tilton version has 3/8-24 ports.)
The radius-faced bearing has a 38mm contact diameter for clutches with 1 3/8" diaphragm spring hole, including Tilton OT-V (4.5") clutches, Tilton OT-III (5.5") Clutches, and certain AP 5.5" carbon clutches (CP6913, CP6914, and CP7543 only).
This version is designed for an overall height of 2.17" (55.1mm), but removing a shim under the bearing will reduce the height to 2.12" (53.8mm). The original Saab assembly had an overall height of 2.05" (52mm). Maximum travel is 0.70 inches, so a clutch pedal stop must be used to prevent damage to the clutch and the engine. Tilton recommends pairing this assembly with a 3/4" bore master cylinder (sold separately).
We also stock the Hydraulic Release Bearing 38mm Replacement Bearing (Part No. TE 62-008) and Tilton Hydraulic Release Bearing Rebuild Kit (Part No. 163-51).
