Brand: Tilton Engineering
| This item qualifies for FREE Shipping in the continental United States! |

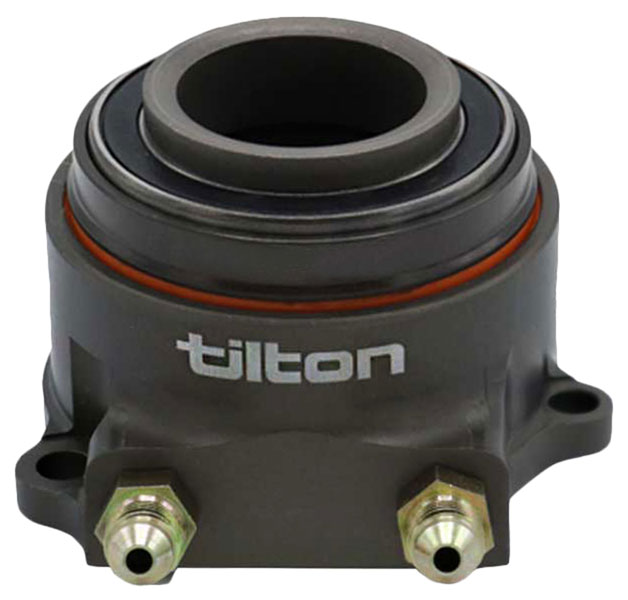

This direct-acting Tilton throwout bearing eliminates all lost motion due to cable stretch or linkage flex. The 0200-Series was designed to be a direct bolt-on replacement for the Saab 900-style HRB, with the same bolt pattern but with Tilton's modular piston for more setup height options. The 1.5" (38mm) base ID is also larger than the original Saab (1.2" / 30mm), which allows a little extra room for a larger input shaft.
This high-profile 2.62" - 2.67" (66.5mm - 67.8mm) setup height* version is taller than the original Saab assembly, which had a 2.37" (60.2mm) setup height. This is ideal for installations where the original Saab 900 bearing is about 5/16" (7mm) too short. Maximum travel is 0.70 inches, so a clutch pedal stop must be used to prevent damage to the clutch and the engine. Tilton recommends pairing this assembly with a 3/4" bore master cylinder (sold separately).
The radius-faced bearing has a 38mm contact diameter for clutches with 1 3/8" diaphragm spring hole, including Tilton OT-V (4.5") clutches, Tilton OT-III (5.5") Clutches, and certain AP 5.5" carbon clutches (CP6913, CP6914, and CP7543 only).
We also stock the Hydraulic Release Bearing 38mm Replacement Bearing (Part No. TE 62-008) and Tilton Hydraulic Release Bearing Rebuild Kit (Part No. 163-51).
* A 0.05" shim under the bearing can be removed to change the height from 2.67" (as supplied) to 2.62" if needed.
