| Regularly $279.99 - Now only $179.99 - You save $100! |
| Due to a cancelled special order we're overstocked on this size Apex joint. Therefore, we're offering a deeply discounted price. |

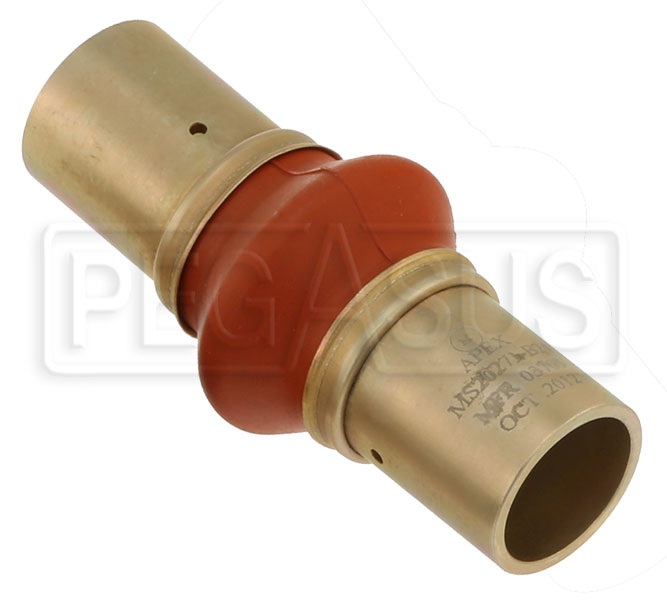

These high-quality, heavy-duty universal joints are manufactured to Military Specification MS-20271. Their strong yet compact, thin wall construction allows them to fit into those tight spots commonly found on shift linkages of mid-engine cars.
Each joint is permanently lubricated and covered with a silicone rubber boot to exclude dirt. They are designed for cross-bolting, pinning, or welding to a close fitting shaft or torque tube. (Welding must be done carefully to prevent heat damage.*) Maximum operation angle 30°.
Beware of counterfeits! Pegasus has been a factory-direct distributor of Apex joints for over 30 years. We only sell brand-new, Genuine Apex brand MS 271 series universal joints - not unreliable foreign knock-offs sold elsewhere. Apex MS 271 joints are made in the USA and tested to meet or exceed Mil Spec MIL-J-6193 and MS20271 standards.
Part Numbering Note:
⁃ Our part numbers refer to the Inside Diameter (ID) of the joint sleeve (OD of the linkage rod or tube).
⁃ The MS dash numbers (-B6 through -B24) refer to the Outside Diameter (OD) of the joint sleeve in sixteenths of an inch.
For example, the B12 size has a 3/4" OD but a 5/8" ID, so it is our part number 1490-5/8. (This size fits the shift finger on Hewland Mk-series and LD200 gearboxes.)
Stepped sizes are not available. If two different diameter tubes must be joined, a bushing must be added to the smaller one. Sold individually.
| Apex Covered Universal Joint Dimensions |
|---|
Bore Size
(ID) | MS Part No. | Overall
Length | Sleeve OD | Bore
Depth | Static Torque Rating
(Inch-Pounds) | Weight (oz) | Part No. |
|---|
| 1 1/4" | MS20271‑B24 | 5 1/4" | 1 1/2" | 1 5/16" | 14,500 in-lb | 18 | 1490‑1 1/4 |
|---|
*If you plan to weld these joints, you need our Anti-Heat° Heat Sink Compound to protect the joint and boot from welding heat.
