Brand: Beta Tools
| This item qualifies for FREE Shipping in the continental United States! |
The Beta Tools C45PRO workshop system brings professional-quality tool storage and organization to your hobby shop or home garage. Of course, it is equally at home in a pro environment! The new matte anthracite (dark grey) finish has chromed Beta logos and a strip of Beta Orange on the handles for an ultra-modern look. Several pre-configured combinations are available, and each is designed to be expanded or modified over time to meet the changing needs of your workspace.

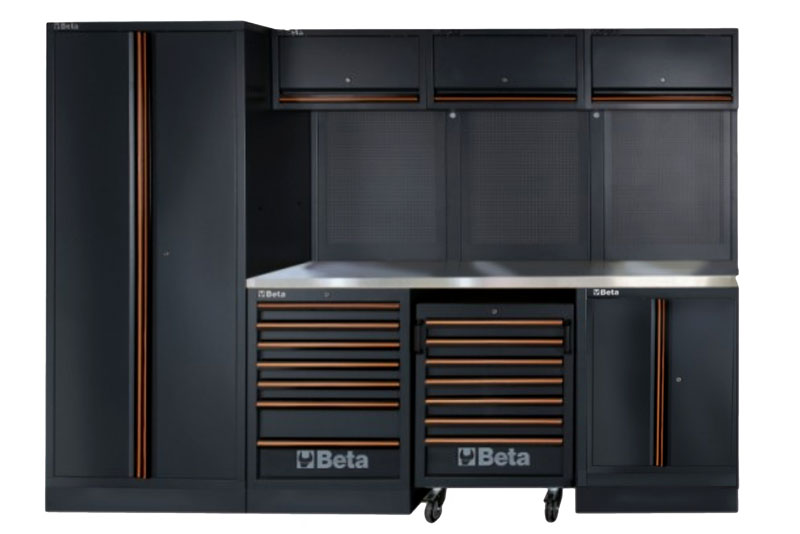

This C45PRO-X+MA large combination includes a stainless steel coated MDF worktop that spans a fixed module with 7 drawers, a mobile roller cab with 7 drawers, and a fixed two-door module. Three perforated wall tool panels are topped with 3 wall-mounted cabinets, and a tall two-door tool cabinet stands at one end. Four wall-mount brackets (3 wide and 1 narrow) are also provided. All three fixed base units have adjustable feet for stability on imperfect shop floors. The 7-drawer roller cabinet has dual handles on the front to make it easy to pull it out from under the worktop when needed and to park it in place after use.
Fixed base module M7 details (1 included):
Five shallow drawers 566mm L x 406mm D x 65mm High (22.28" L x 16" D x 2.56" H), 25kg (55.1 lb) capacity
Two tall drawers 566mm L x 406mm D x 145mm High (22.28" L x 16" D x 5.71" H), 30kg (66.13 lb) capacity
All drawers feature ball-bearing slides and protective foam rubber mats and a single central keyed lock
Outside dimensions 680mm Long x 458mm Deep x 910mm High (26.77" L x 18.03" D x 35.83" H)
Fixed base module MA details (1 included):
Two doors (side-by-side) with a single central keyed lock
Single adjustable shelf measures 670mm Long x 420mm Deep (26.38" L x 16.54" D)
Outside dimensions 680mm Long x 458mm Deep x 910mm High (26.77" L x 18.03" D x 35.83" H)
Mobile roller cabinet C7 details (1 included):
Six shallow drawers 532mm L x 406mm D x 65mm High (20.94" L x 16" D x 2.56" H), 25kg (55.1 lb) capacity
Two tall drawers 532mm L x 406mm D x 145mm High (20.94" L x 16" D x 5.71" H), 30kg (66.13 lb) capacity
All drawers feature ball-bearing slides and protective foam rubber mats and a single central keyed lock
Four swivel casters 100mm (4") OD, 2 with brake; dual front handles for maneuvering under and out of the worktop when needed
Outside dimensions 646mm Long x 458mm Deep x 862mm High (25.43" L x 18.03" D x 33.94" H)
Wall cabinet PM details (3 included):
Single swing-up door with gas supports and key lock
Outside dimensions 680mm Long x 281mm Deep x 350mm High (26.77" L x 11.06" D x 13.78" H) overall per cabinet
Perforated panel PF details (3 included):
Designed for use with Beta Tools hooks, racks, and toolholders (sold separately)
Dimensions 614.5mm Long x 24mm Deep x 1052mm High (24.19" W x 1" D x 41.42" H) per panel
Tall cabinet AS2 details (1 included):
Two doors (side-by-side) with a single central keyed lock
4 adjustable shelves, each 900mm Long x 430mm Deep (35.43" L x 16.93" D)
Outside dimensions 915mm Long x 458mm Deep x 2000mm High (36.02" L x 18.03" D x 78.74" H)
Stainless-clad worktop C45PX/3-2.0MT details (1 included):
Sturdy MDF construction wrapped in stainless steel for extra rigidity and protection
Measures 2040mm Long x 463mm Deep x 38mm Thick (80.31" L x 18.23" D x 1.5" T)
The fully-assembled system measures 2955mm Long x 495mm Deep x 2000mm High (116.34" L x 19.49" D x 78.74" H).
This set is a modification of the original C45PRO-X unit pictured in the Beta catalog: The Euro-spec MS Service Module is replaced by the MA 2-door module for the North American market.
