Brand: OptiMATE Battery Chargers
The quick-disconnect ring terminal leads are a great way to keep your vehicle ready to accept your OptiMate charger, but having the SAE pigtail hanging loose isn't great for safety or for looks. Plus, it can be tough to make the 2-pin connection when you're wearing heavy gloves. The revolutionary MagCode® magnetic connector solves those issues and more!

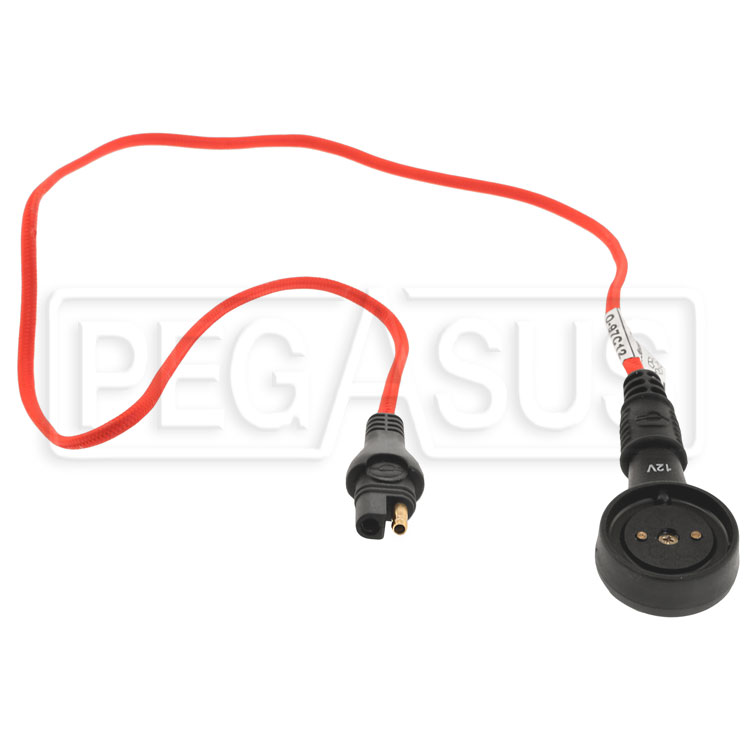

The heart of the MagCode system is a round plastic connector clip at one end of the leads. Inside the round connector are two contacts (one positive, one negative). An interlocking groove on the circumference keeps the connector centered on the female receptacle. A single tooth in the groove ensures correct alignment and prevents reverse polarity. If the tooth is not in its notch, the contacts can't touch! A magnet embedded in each connector side holds the connectors together but releases with a simple tug.
A standard 2-pin SAE plug at the other end of the 30 inch (75cm) leads is designed for use with any OptiMate 6 Volt or 12 Volt charger or maintainer. The 16 AWG wire size is rated for 10 Amps continuous duty (13A intermittent). Sold individually. Chargers sold separately.
The mating OptiMate MagCode 12V Panel-Mount Magnetic Port Lead (Part No. 1178-TM-O-97P12) is sold separately.
