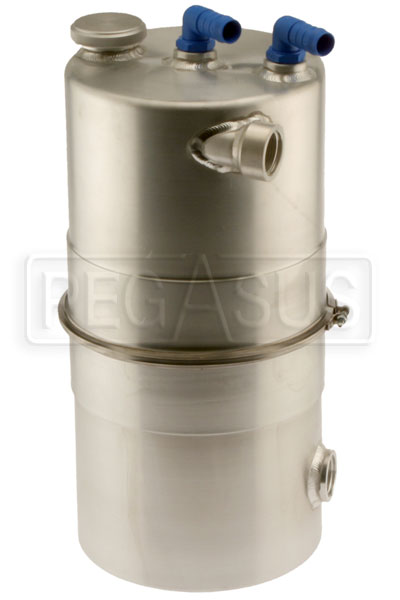

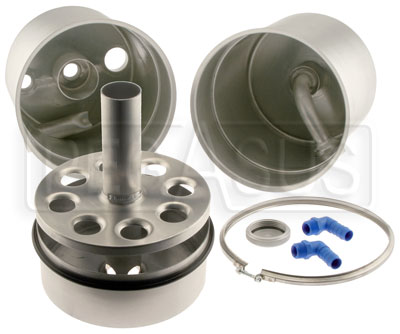

These sturdy universal dry sump tanks can be disassembled for easy and thorough cleaning. Lightweight spun aluminum construction looks great as is, or you can buff it to a high polish.
The scavenge inlet fitting is angled to spin the oil down the side of the tank, separating the air bubbles from the oil. A central two-stage baffle helps to de-aerate the oil while keeping oil from sloshing away from the lower pickup fitting. Two-piece construction allows the inlet and outlet fittings to be clocked to any angle desired. Inlet and outlet ports are both threaded to accept 12AN O-Ring Port Adapters, sold separately. Measures 8 1/4" diameter x 14" high (less filler cap and vent fittings). This size holds approximately 7.9 quarts when filled to a level slightly below the baffle.
The vent fittings on the top surface are threaded with 3/4 NPT female ports. Right angle barbed fittings are furnished for 3/4" I.D. hose. Connect the side vent fitting to the valve cover breather vent. The center vent is the vapor outlet to your catch tank.
Replacement parts available:
O-Ring for Lightweight Dry Sump Tank, Part No. 1256-208-8.25
Band Clamp for Lightweight Dry Sump Tank, Part No. 1256-211-8.25
Filler Cap for Lightweight Dry Sump Tank, Part No. 1256-210
Vent Fitting, 3/4 NPT to 3/4 Inch Hose, Part No. 1256-205
Note: These tanks are not sealed during shipment. Be sure to clean them before installation to remove all manufacturing and packing scrap.
