Brand: Optimum Balance Products (OBP)
| This item qualifies for FREE Shipping in the continental United States! |

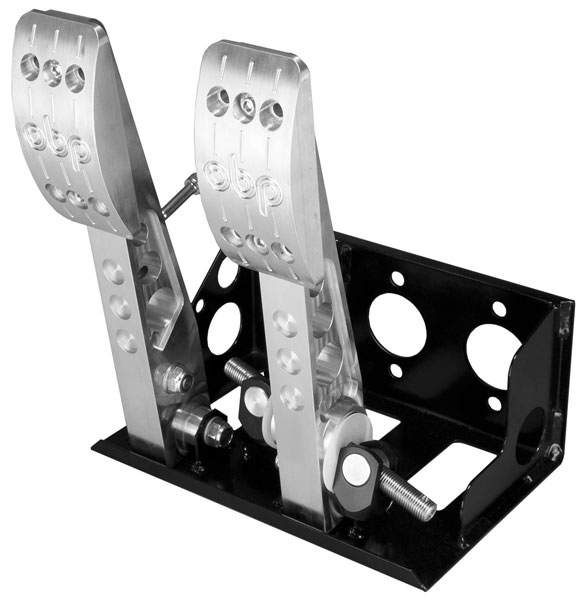

The Pro-Race 2-pedal floor-mount pedal box offers a simple-to-install hydraulic system that is suitable for a wide range of applications. The lightweight assembly includes Clutch and Brake pedals in one unit. Both pedals ride on oil-impregnated bushings for smooth, consistent operation and long life.
Clutch pedal: For hydraulic applications. Includes a built-in adjustable pedal stop to prevent overtravel.
Brake pedal: For dual master cylinder systems. Includes a built-in bias bar (7/16" thread, accepts standard 5/16" pushrods).
This V2 version features three aluminum pedals with adjustable tread-plate pads for traction. Weighs 4.2 lbs without master cylinders. Measures 8 3/8" Wide x 11 1/16" High at pedals x 5 9/16" Deep without master cylinders. Accepts master cylinders with the common 2-bolt vertical (2 1/4") mounting pattern. Master cylinders and remote bias adjuster cable sold separately.
Recommended master cylinders and adjuster cables to use with this pedal box (sold separately):
Girling Master Cylinders or Tilton 74-, 75-, or 76- Series Master Cylinders
Tilton Bias Bar Remote Adjuster Cable (Part No. 3526) or OBP Bias Bar Remote Adjuster Cable (Part No. 3519-126)
