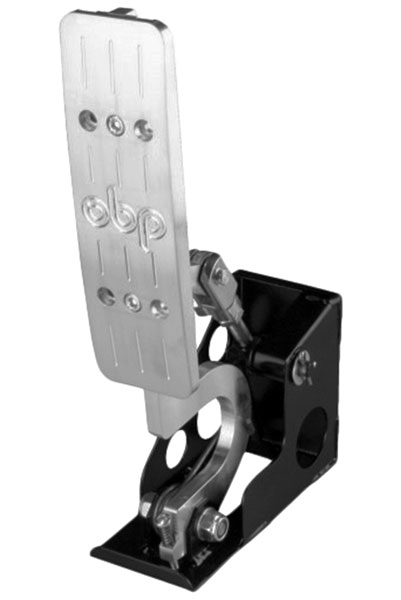

OBP Pro-Race Throttle Pedal Assembly, Floor or Top Mount

Brand: Optimum Balance Products (OBP)

This high-quality throttle pedal comes installed in a compact floor-mount box for easy installation. A universal pivoting linkage is provided for front-engine applications, but you can easily convert the pedal to work in mid-engine or rear-engine layouts.

The pedal features a spring-loaded return and adjustable return stop for consistent pedal location. An oil-impregnated pivot bushing gives smooth motion without fear of binding or hanging up. The pedal stem is contoured to clear your brake bias adjuster cable, and the textured pedal pad is adjustable for length and pedal spacing.*

Note that this is a universal design, so at least minor fitting and adapting will be required for any installation. You can trim (or eliminate) the mounting box as needed to suit virtually any floor-mount or firewall-mount installation. Assembly measures 260mm High x 75mm Wide x 140mm Deep (10 1/4" H x 3" W x 5 1/2" D) and weighs 0.9kg (2 lb).

* This same assembly is sold under obp Motorsport part numbers 0047PR (floor mount) and 0047PRT (top mount). To convert from one to the other, simply turn the pedal pad over to make the "obp" logo right-side-up!
